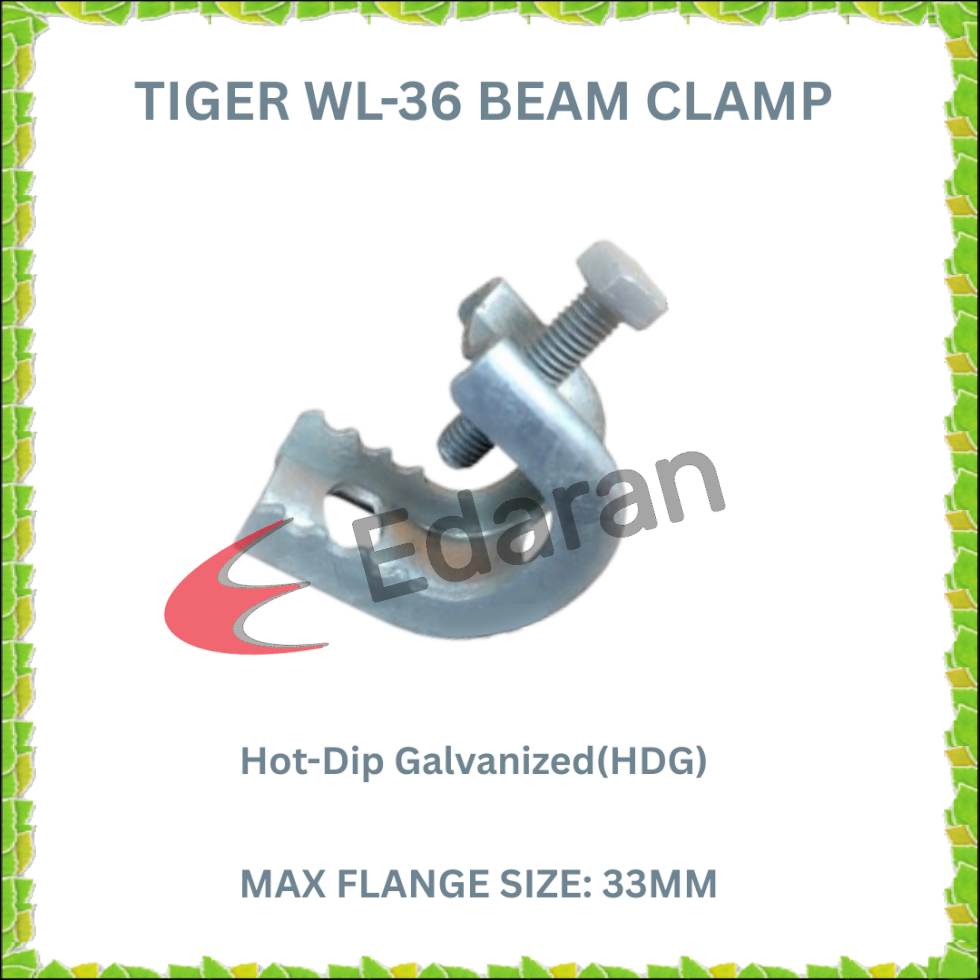

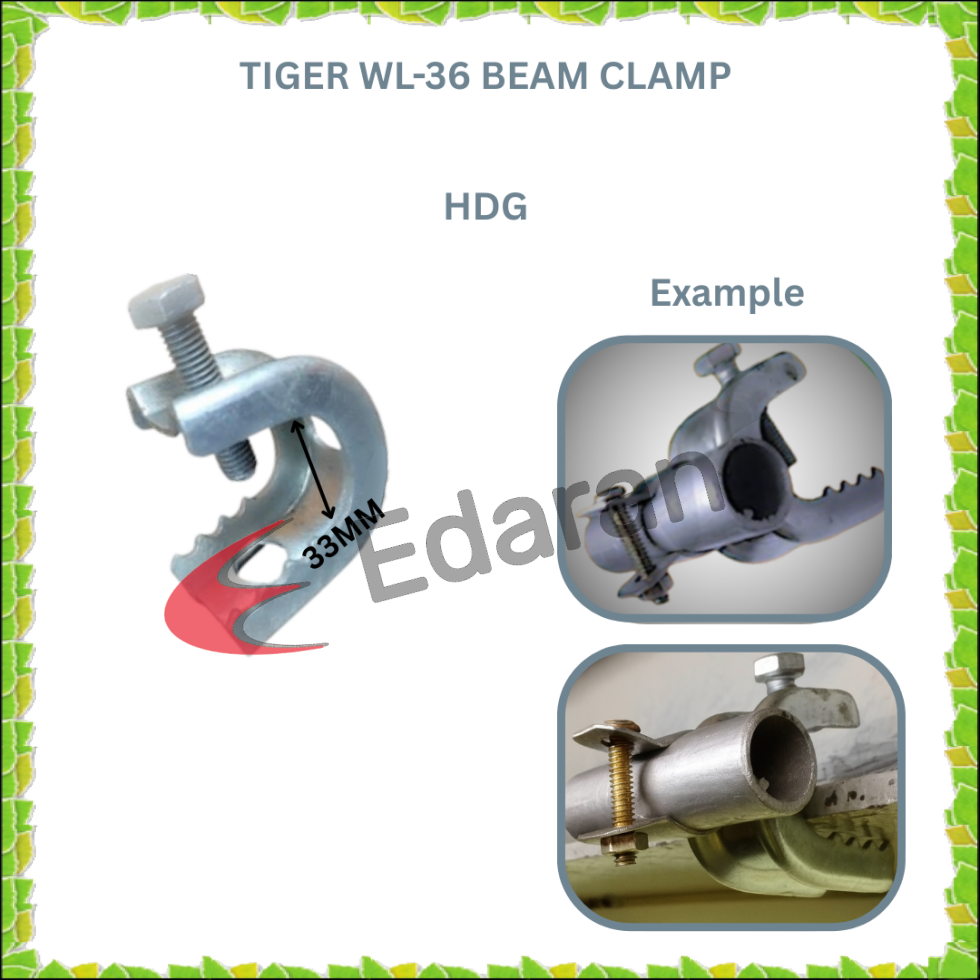

TIGER WL-36 BEAM CLAMP -HDG (MAX FLANGE SIZE: 33MM)
The Tiger WL-36 Beam Clamp – HDG (Max Flange Size: 33 mm) is basically a mechanical device that lets you create a secure lifting or anchoring point on an existing steel beam without welding, drilling, or damaging the beam
How to Use
(Always follow the manufacturer’s instructions and safety guidelines.)
-
Inspect Before Use
-
Check the clamp for cracks, deformation, rust, or missing parts.
-
Verify the load capacity matches or exceeds your application.
-
Ensure the beam flange is ≤ 33 mm thick.
-
-
Open the Clamp
-
Rotate or loosen the threaded screw/adjuster to open the jaws wide enough to fit over the beam flange.
-
-
Position on the Beam
-
Place the clamp over the top flange of the I-beam or H-beam at the desired location.
-
Ensure it’s fully seated and aligned—no partial contact.
-
-
Tighten Securely
-
Use the clamp’s screw spindle or bolt to tighten the jaws against the flange.
-
It should be firm enough that it cannot slide along the beam under load.
-
-
Attach Lifting Equipment
-
Connect your hoist, chain block, pulley, or load to the clamp’s lifting eye/shackle.
-
Make sure the load is vertical unless the clamp is designed for angled pulls.
-
-
Test with Light Load
-
Apply a small initial load to ensure the clamp is stable before proceeding to full load.
-
-
After Use
-
Remove the clamp by loosening the screw spindle and sliding it off the flange.
-
Store it in a dry place to protect the hot-dip galvanizing.
-
