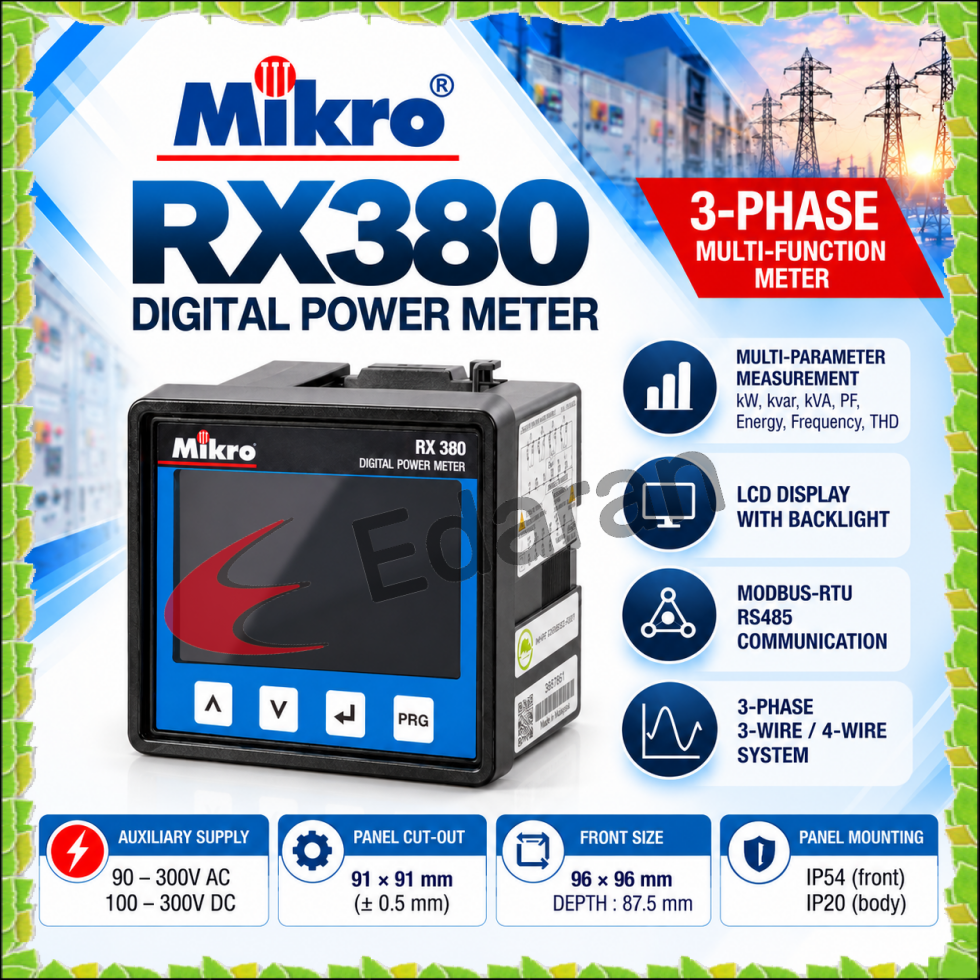

MIKRO RX380 3-PHASE DIGITAL POWER METER
The Mikro RX380 is a multifunction digital power meter designed for monitoring electrical parameters in three-phase power systems. It features an LCD display with backlight and RS485 communication using the Modbus-RTU protocol.
FEATURES :
3-Phase 3-Wire and 3-Phase 4-Wire System Support
LCD Display with Backlight
RS485 Isolated Communication Interface
Modbus-RTU Communication Protocol
Multiple Electrical Parameter Measurement
Panel Mounting Design
MEASUREMENT PARAMETERS :
Phase Voltage (L-N) and Line Voltage (L-L)
Phase Current and Neutral Current
Active Power (kW)
Reactive Power (kvar)
Apparent Power (kVA)
Power Factor (PF)
Frequency (Hz)
Energy Measurement (kWh, kvarh and kVAh)
Total Harmonic Distortion (THD)
TECHNICAL SPECIFICATIONS :
Auxiliary Power Supply: 90–300V AC or 100–300V DC
Current Input: CT Secondary 5A / 1A
Communication: Isolated RS485
Protocol: Modbus-RTU
Baud Rate: 4800 / 9600 / 19200 / 38400
Front Dimensions: 96 × 96 mm
Panel Cut-Out: 91 × 91 mm ± 0.5 mm
Depth: 87.5 mm
Enclosure Protection: IP54 (Front) / IP20 (Body)
APPLICATION:
Suitable for electrical panel installation and monitoring of three-phase electrical systems.
IMPORTANT NOTES :
Please verify the required specifications and compatibility before placing an order.
Product images are for reference only. Actual product appearance may vary slightly.
Installation and wiring must be carried out by a qualified electrician.
